Baleine SRU Module

We provided full-scope engineering and 3D modelling services for the Baleine SRU (Sulphur Recovery Unit) project. Our scope included:

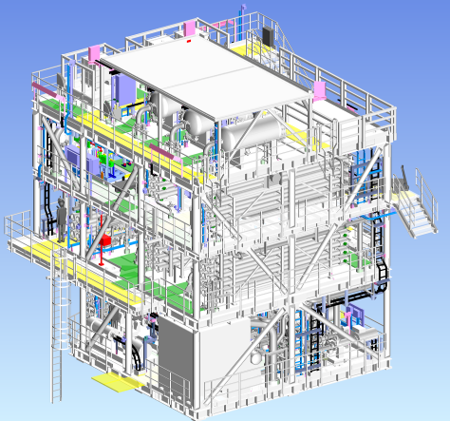

• 3D Modelling across all disciplines, including equipment modelling for design coordination and clash detection.
• Detail Engineering in:
  • Layout
  • Piping
  • Structural
  • Pipe Supports
  • Electrical & Instrumentation (E&I)
• Drawing Extraction & Production for all disciplines:
  • Piping isometrics
  • General arrangement (GA) drawings
  • Support drawings
  • Layouts
  • Electrical and instrumentation diagrams
  • Structural drawings and calculations
  • Pipe support calculations

This engineering package supported the development of a robust and maintainable SRU system, aligned with project specifications and industry standards.
